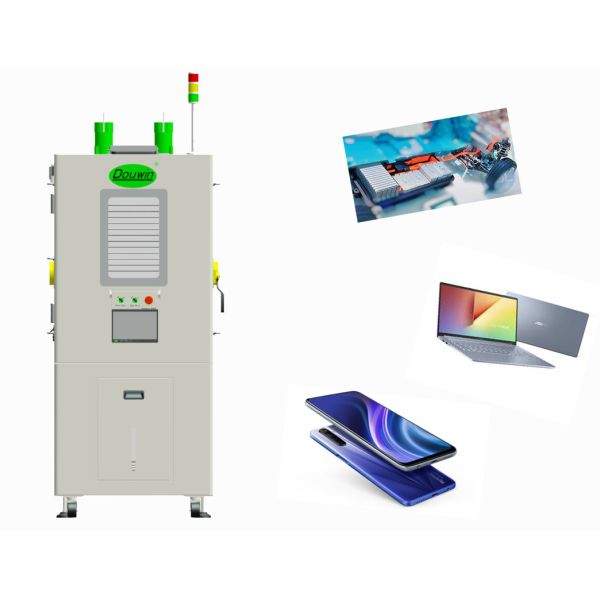

600L Battery Test Chamber Temperature And Humidity
Test Chamber For Battries
Application:
Our chamber has a compelete explosion-proof mechanism to ensure the safety in the test process. The chamber is suitable for testing all kinds of small battery products, such as batteries, mobile phones, computers, etc.
Corresponding Standard:
GB/T 5170.2-2008
GB/T 5170.5-2008
GB/T 2423.1-2008(IEC60068-2-1:2007)
GB/T 2423.2-2008(IEC60068-2-2:2007)
GB/T 2423.3-2016(IEC60068-2-78:2012)
GB/T 2423.4-2008(IEC60068-2-30:2005)
GB/T 2424.7-2008
GJB 150.3A-2009
GJB 150.4A-2009
GJB 150.9A-2009
Technical Parameters :
| Item Name | 600L Battery Test Chamber Temperature And Humidity Test Chamber For Battries |
| Model | DTB-600-A40B150-H-A-FB | DTB-600-A70B150-H-A-FB |
| Workspace Dimensions(MM) | 850×750×900 | 850×750×900 |
| Volume(L) | 600 | 600 |
| Temperature Change Rate | Heating Rate:-40℃～+150℃≥3℃/min Cooling Rate:+20℃～-40℃≥1℃/min | Heating Rate:-70℃～+150℃≥4℃/min Cooling Rate:+20℃～-70℃≥1℃/min |
| Temperature Range | -40℃～+150℃ | -70℃～+150℃ |
| Humidity Range | 25℃～85℃, 20%～98%RH |
| Power Supply | 380VAC±10%,50Hz±1% |
| Temperature Uniformity | ≤2℃(No Load) |
| Temperature Fluctuation | ≤±0.5℃(No Load) |
| Temperature Deviation | ≤2℃(No Load) |
| Humidity Deviation | ±3%RH(＞75%RH no load), ±5%RH(≤75%RH no load) |
| Resolution | 0.1℃,1%RH |
| Standard Configuration | Φ100mm cable port×2,with soft high-low temperature resistant rubber plug Equipped with standard RS232/RS485/RJ45 communication interface Stainless steel sample shelf ×2 Caster/×4 sets Interior light |
Main Features:
| 1. The chamber adopts humanized man-machine interaction interface,it is so easy for buyer to operate it. |
| 2. The chamber is matched remote monitoring software, and provides RS232/RS485/RJ45 standard communication interfaces to realize the remote control and management of the test chamber. |
| 3. The chamber is small and beautiful.It has stable performance and low noise, and it is very suitable for various laboratories and production lines. |
| 4. The chamber adopts innovative energy-saving technology and has passed the national energy-saving certification. Compared with other similar products,our chamber helps saving 38% energy. |
| 5. The chamber adopts the form of air cooling heat exchange, does not need external cooling water, with the low environmental requirements, it very suitable for most occasions. |
| 6. The chamber with advanced control logic and PID adjustment technology so that it can maintain long-term stable operation. |
| 7. The chamber has multiple protection functions,which ensure the safety and reliability of product testing. |
| 8. The main components of the chamber are from international premium brands,so the whole machine has high reliability. |
| 9. The chamber is equipped with explosion-proof window, explosion-proof chain, pressure relief port and other protective parts to ensure the safety of the test. |
Some Pictures of Our Products:
The whole machine has a good looking, tidy, clean and stable
With its handlock, the machine keeps it safe all the time
The cable ports are desighed with soft highh-low temperature resistant rubber plug
and we provide 3 kinds of dimensions of cable ports
D5mm/10mm15mm are available
Why choose us?
1. We promised our customers that the testing equipments which were produced by Douwin are superior on quality. We provide products and service for numerous world-renowned enterprises,and get their high praise.
2. We always do our best to satisfy our customers by providing 24 hours online consultation service,and also we have a professional team who can provide the professsional program and technical support for our customers.
3. Before shipment, our quality inspection department will check the equipment to ensure that everything is okay with the goods. Moreover, we use the safe wooden packing to protect the goods from outside damage.
4. EXW or CIF are available,we have established long-term and stable cooperation with international logistics providers which can provide stable logistics services. Besides,customers can also specify logistics providers according to own choice.
5. We are based on shenzhen,after nearly 20 years of development,and in each region has set up the after-sales service point and the service representative office .So we can provide the after-sales service quickly, and also we provide 1 year free warranty.
6. We provide other services:
Spare parts sales
Acceptable customization for all kinds of special specification products；
Transform the equipment to save energy and optimize it to help enterprises reduce costs,even the equipment is from different manufacturers.
